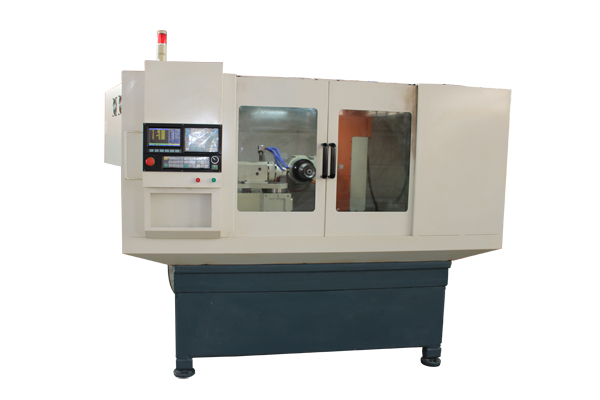

730五軸主軸旋轉(zhuǎn)工具磨----技術(shù)參數(shù)*
|
Scope of grinding |
MAX diameter of the holding workpiece |
20mm |
|
Min diameter of the holding workpiece |
3mm |
|
|
Max length of the holding workpiece |
200 mm |
|
|
Grinding diameter |
0.5 mm-16 mm |
|
|
The lathe bed base |
Steel welding(high strength, light weight) |
1600*1700*500 |
|
Axis direction travel |
X-axis Travel |
300 mm |
|
Y-axis Travel |
250mm |
|
|
Z-axis Travel |
150 mm |
|
|
Positional accuracy |
0.003 mm |
|
|
Repeated positioning accuracy |
0.002 mm |
|
|
Rapid traverse（X/Y/Z） |
10m/min |
|
|
Workpiece clamp cutter A-axis |
A-axis rotation angle |
360° |
|
start clump weight/The minimum pressure |
4kg/cm² |
|
|
Minimum dividing precision |
0.001° |
|
|
Spindle rotation B-axis |
B-axis rotation angle |
270° |
|
|
Minimum dividing precision |
0.001° |
|
grinding wheel spindle (single-head) |
Spindle power |
7.5kw |
|
Speed of grinding wheel spindle rotate |
3000-9000rpm |
|
|
max diameter of grinding wheel |
80mm-150mm |
|
|
qty of grinding wheel |
1-4片 |
|
|
Axial servo and motor cooling(domestic) |
X-axis servo motor |
1.3kw |
|
Y-axis servo motor |
1.3kw |
|
|
Z-axis servo motor |
1.3kw((with electronic brade)p> |
|
|
A-axis servo motor |
0.75kw |
|
|
B-axis servo motor |
0.75kw |
|
|
Cooling motor |
2HP |
|
|
Cycle motor |
1HP |
|
|
Self-lubrication motor |
1/8HP |
|
|
The axial slide way (P5 level) (Taiwan silver and titanium) |
X-axis shaft 35 rectangular heavy load |
1000MM,2 bar |
|
Y-axis shaft 35 rectangular heavy load |
900MM,2 bar |
|
|
Z-axis shaft30 rectangular heavy load |
700MM |
|
|
A-axis front- loading broach |
200 |
|
|
B axis machine hand reduction box |
50 |
|
|
DRYFLO |
|
1 set |
|
Spindle water cooling device |
|
1 set |
|
Controller |
Domestic 6 axis system, ISO standard G code programming, independent development of grinding software |
|
|
Machine tool specification |
machine tool |
10.0KVA |
|
cooling tank capacity |
400L |
|
|
machine overall dimension |
寬2350×1650×2100mm |
|
|
mahchine tool gross weight |
3000kg |
|
|
Standard attachment (optional) |
automatic control lubrication system |
1 cover |
|
grinding flange |
3 form |
|
|
standard tool kit |
1 cover |
|
|
SCHAUBLIN collect chuck |
φ4φ6φ8mm each one pcs |
|
|
220V 50Hztransformer |
1cover |
|
|
trimming wheel system(optional) |
1cover |
|
|
Oil collector(optional) |
1cover |
|
|
oil cooling system(optional) |
1cover |
|
|
3D needle(optional) |
1cover |
|
|
Grinding wheel(optional) |
1cover |
|
|
grinding oil (optional) |
1000L |
|
|
|
|
|
|
Process substance |
Standard milling cutter, drill, rimer, wooden working cutter, engraving cutter, high-speed steel etc. |
|
|
Process material |
Hard alloy, high-speed steel,etc |
|
|
Price |
350000 RMB |
|
