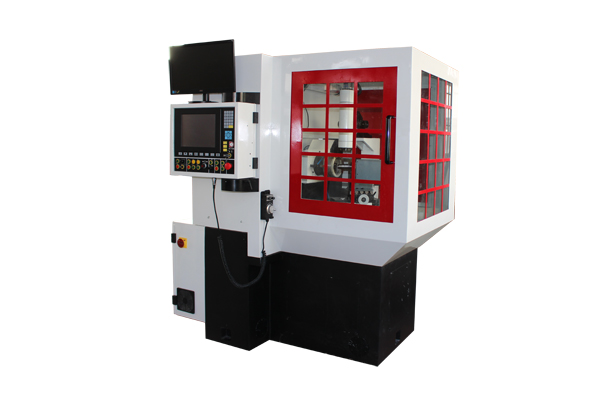

Four axis CNC diamond cutter Grinding Machine
|
APPLY |
Applies to mess production of various alloy blade,pcd blade,cbn blade. Automatic grinding with no manual. Uniform grinding, system automatic. Automatic production with long time.Also applies to grinding various cutters of golden pcd,cbn. |
|
|
Grinding scope: blade, milling cutter |
Cutter max length |
100 mm |
|
Max diameter |
20 mm |
|
|
Grinding wheel spindle |
Rotate speed |
800-5000rpm |
|
Motor |
7.5kw |
|
|
spindle diameter |
150mm |
|
|
grinding wheel max diameter |
100- |
|
|
Max speed of grinding wheel line |
>70/sec |
|
|
Spindle manual adjust angle |
angle scope adjustment |
-5°~25° |
|
workpiece axis Rotate axis, fix axis |
manual stall the blade of loading bed |
can choose the toolbar |
|
Min degree rotation axis resolution |
0.001° |
|
|
Axis direction travel |
(Xaskawa) |
150mm |
|
(Yaskawa) |
150mm |
|
|
Positional accuracy |
< |
|
|
Repeated positioning accuracy |
< |
|
|
Rapid traverse （ X/Y） |
|
|
|
A shaft rotation angle |
360° |
|
|
C-axis rotation angle |
-15°~190° |
|
|
Axial servo and motor cooling |
X-axis servo motor （Yaskawa） |
1.3kw |
|
Y-axis servo motor （Yaskawa） |
1.3kw |
|
|
C-axis servo motor （Yaskawa） |
0.75kw |
|
|
A-axis servo motor （Yaskawa） |
0.75kw |
|
|
Cooling motor |
3hp |
|
|
Cycle motor |
2hp |
|
|
Central automatic lubrication motor control |
1/8hp |
|
|
Control Systems |
LCD |
four axis linkage |
|
optical enlargement |
magnification times under optical microscope |
4times |
|
IPC and LCD |
15 inch |
|
|
Max enlargement of optics CCD system |
100 times |
|
|
Power Source |
Main power supply |
12KW |
|
supply voltage |
380V three phase/50Hz |
|
|
Machinery specification |
Total weight, including cooling water box |
4000kg |
